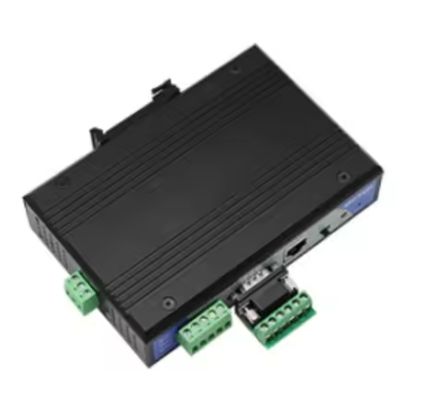

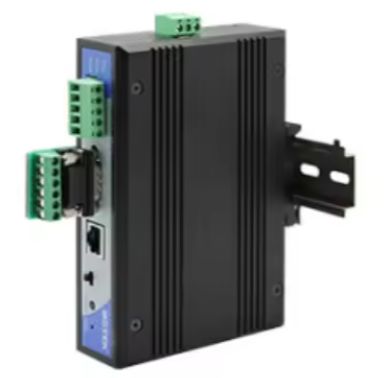

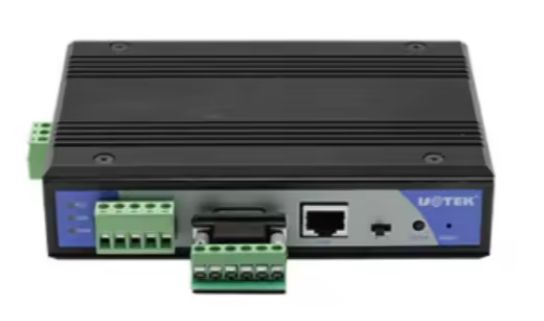

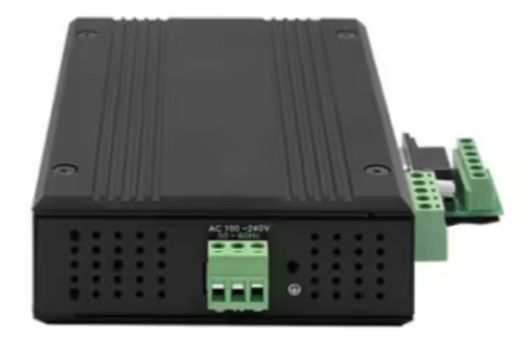

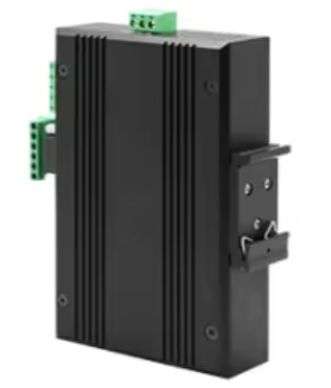

UOTEK UT-6204-PLC AC DC Power Line Carrier Communication Module With RS-485 RS-232 Ethernet Interface

Large Image : UOTEK UT-6204-PLC AC DC Power Line Carrier Communication Module With RS-485 RS-232 Ethernet Interface

Product Details:

Place of Origin:	China
Brand Name:	HUARAY
Certification:	FCC,CE,RoHS
Model Number:	UT-6204-PLC

Payment & Shipping Terms:

Minimum Order Quantity:	2/pcs
Price:	Negotiable
Packaging Details:	Inner Staticproof Bag, External Cardboard Box
Delivery Time:	1~3 working days
Payment Terms:	T/T, Western Union, Moneygram, Paypal
Supply Ability:	500,000pcs/year

Contact Now

Detailed Product Description

Highlight:

RF Module

Wireless RF Transceiver

RF Data Transceiver Module

VHF Module

Radio Module

Key attributes

Model Number

UT-6204-PLC

Chipset

N/A

Application

industrial

Type

Ethernet Module

Country of Origin

China

Brand

Huaray

Interface features

The interface is compatible with EIA/TIA RS-232C and RS-485 standards

Input voltage

AC100-240V~50/60HZ

Transmission medium

twisted pair or shielded wire

Working mode

RS-485 asynchronous half-duplex, RS-232 full-duplex communication

Transmission rate

115200bps (1200-115200 bps optional)

Transmission distance

0-1.2 km (1200-115200 bps)

Dimensions

150mm*100mm*37mm

Operating environment

-20℃ to 70℃, relative humidity is 5% to 95%

interface

RS-485/232 interface 10/700 μ s waveform per line

Protection level

differential mode 2000V common mode 1000V surge protection

Packaging and delivery

Packaging Details

UOTEK standard box packing

Port of dispatch

Yantian

Selling Units

Single item

Single package size

18X12X6 cm

Single gross weight

1.000 kg

Packaging examples

Specification

item	value
Model Number	UT-6204-PLC
Type	Ethernet Module
Country of Origin	China
Brand	UOTEK
Chipset	N/A
Application	industrial
Interface features	The interface is compatible with EIA/TIA RS-232C and RS-485 standards
Input voltage	AC100-240V~50/60HZ
Transmission medium	twisted pair or shielded wire
Working mode	RS-485 asynchronous half-duplex, RS-232 full-duplex communication
Transmission rate	115200bps (1200-115200 bps optional)
Transmission distance	0-1.2 km (1200-115200 bps)
Dimensions	150mm100mm37mm
Operating environment	-20℃ to 70℃, relative humidity is 5% to 95%
interface	RS-485/232 interface 10/700 μ s waveform per line
Protection level	differential mode 2000V common mode 1000V surge protection
