Quad-Band SIMCOM SIM900/ SIM900A/SIM900B/ SIM900D sim300 gsm module

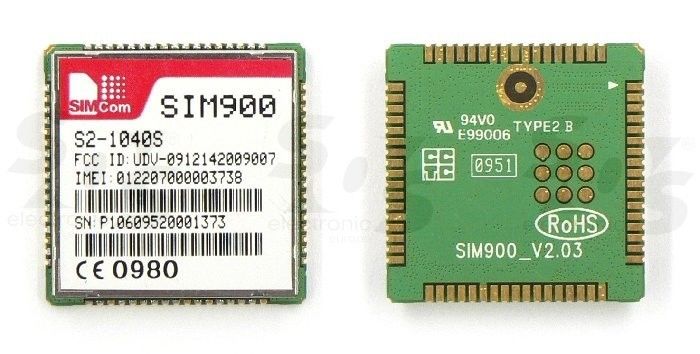

SIMCom presents an ultra compact and reliable wireless module. The SIM900 Quad-band GSM/GPRS module is part of SIMCom’s new Surface Mount Technology (SMT) series, allowing you to benefit from small dimensions and cost-effective solutions.

Featuring an industry-standard interface, the SIM900 delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. With a tiny configuration of 24mm x 24mm x 3 mm, SIM900 can fit almost all the space requirements in your M2M application, especially for slim and compact demand
of design.


General features
Quad-Band 850/ 900/ 1800/ 1900 MHz
GPRS multi-slot class 10/8
GPRS mobile station class B
Compliant to GSM phase 2/2+
  – Class 4 (2 W @850/ 900 MHz)
  – Class 1 (1 W @ 1800/1900MHz)
Dimensions: 24* 24 * 3 mm
Weight: 7g
Control via AT commands (GSM 07.07 ,07.05 and
  SIMCOM enhanced AT Commands)
SIM application toolkit
Supply voltage range 3.4 ... 4.5 V
Low power consumption
Normal Operation temperature: -30 °C to +80 °C

Specifications for Fax
Group 3, class 1

Specifications for Data
GPRS class 10: max. 85.6 kbps (downlink)
PBCCH support
Coding schemes CS 1, 2, 3, 4
CSD up to 14.4 kbps
USSD
Non transparent mode
PPP-stack

Specifications for SMS via GSM/GPRS
 Point to point MO and MT
SMS cell broadcast
Text and PDU mode

Drivers
MUX Driver

Specifications for Voice
Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
Hands-free operation
(Echo suppression)

Interface
Interface to external SIM 3V/ 1.8V
analog audio interface
RTC backup
SPI interface
Two Serial interfaces
Antenna pad
I2C
GPIO
PWM
ADC

Compatibility
AT cellular command interface

Approvals(planning)
CE
FCC
ROHS
PTCRB
GCF
AT&T
ICASA
