Product Details:
Place of Origin: China
Brand Name: HUARAY
Certification: CE, FCC, ROHS
Model Number: HR-1021
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: negotiable
Packaging Details: Inner Staticproof Bag, External Cardboard Box
Delivery Time: two working days
Payment Terms: T/T, L/C, Papal, Moneygram, Western Union
Supply Ability: 100,000PCS/month
Detailed Product Description

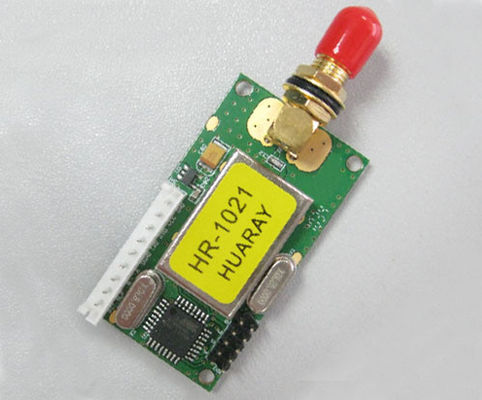

HR-1021, the low-power wireless transceiver data module is used as the wireless data transceiver in short-ranges, with the small size, weight and power consumption and good stability and reliability. Narrowband low power UHF wireless data transmitters and receivers with channel spacings as low as 25 kHz:

* AMR Automatic Meter Reading

 * Wireless alarm and security systems

 * Home automation

 * Low power telemetry

* 433 / 868 and 915 MHz ISM/SRD band systems

* Data radio can be used for Wireless conference voting system;

* Mapping;

* Radio modem can be used for Sports training & competition;

* Wireless dishes ordering;

* Wireless POS, PDA wireless smart terminal;

* RF modem can be used for Electronic bus station and intelligent traffic;

* RF transmitter Wireless electronic display screen and queuing machine;

* Wireless telemetry Charging for parking, parking lot;

* Wireless modem Automobile inspection and four-wheel orientation;

* Wireless sensor Industrial wireless remote control and air conditioning remote controller;

* Observation and predication of oil well and hydrological information;

* Wireless RS232/RS485 conversion/connector;

* Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;

Technical specification of HR-1021:

Serial number

Item

Parameter

Note

1

Modulation mode

GFSK/FSK



2

Work frequency

420.00~450.30/860~875/910~925MHz



3

Transmission power

17Bm(50mW)



4

Receiving sensitivity

-115 ~ -118dBm



5

Channel amount

8channel

User setting

6

Transmitting current

<100mA



7

Receiving current

<30mA



8

Sleeping current

<3uA



9

Interface velocity

1200/2400/4800/9600/19200bps



10

Interface mode

UART TTL/RS-232/RS-485

User setting

11

Power supply

+3~5VDC



12

Working temperature

-25 to +80

HW 48/3000w Telecom Rectifier R4850G6 R4850G2 R4850N6 48V Telecom Power Supply Rectifier Module 0

13

Working humidity

10%~90%(relative humidity without condensation)



14

Dimension

47mm*6mm*10mm



15

Reliable transmit distance

1200m
