APPLICATION:
* AMR Automatic Meter Reading
* Wireless alarm and security systems
* Building automation, security, wireless monitoring and control of room equipment, Access Control System;
* Wireless data transmission, automatic data collection system;
* Low power telemetry
* 433 / 868 and 915 MHz ISM/SRD band systems
* Data radio can be used for Wireless conference voting system;
* Mapping;
* Radio modem can be used for Sports training & competition;
* Wireless dishes ordering;
* Wireless POS, PDA wireless smart terminal;
* RF modem can be used for Electronic bus station and intelligent traffic;
* RF transmitter Wireless electronic display screen and queuing machine;
* Wireless telemetry Charging for parking, parking lot;
* Wireless modem Automobile inspection and four-wheel orientation;
* Wireless sensor Industrial wireless remote control and air conditioning remote controller;
* Data communication used for railway, oil field, dock and army.
* LED display in thruway and public places
* Wireless RS232/RS485 conversion/connector;
* Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;

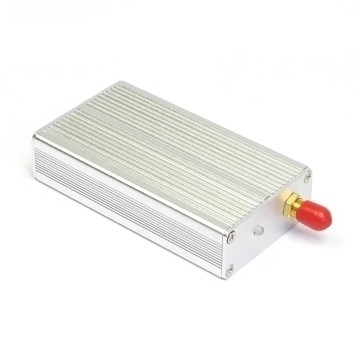

Technical specification of HR-1029:
|
PERFORMANCE
|
|
Power Output:
|
≤2W (customized)
|
|
RF Line-of-sight Range:
|
5Km@9600bps,7Km@1200bps
|
|
RF Effective Rate:
|
1200~38400bps optional, 57600bps customized
|
|
Receiver Sensitivity:
|
-123dBm@1200bps, -118dBm@9600bps
|
|
NETWORKING
|
|
Networking Topology:
|
Point-to-point, point-to-multipoint
|
|
POWER
|
|
Supply Voltage:
|
5V DC(customized according requirement)
|
|
Transmitting Current:
|
<1.5A
|
|
Receiving Current:
|
<30mA (TTL connect)
|
|
Sleeping Current:
|
<20µA
|
|
GENERAL
|
|
Frequency Band:
|
433MHz(Default), 450MHz~915MHz(customized)
|
|
Communication Mode:
|
Half-duplex
|
|
Channel:
|
8(Default), 16/32(customized)
|
|
Interface:
|
RS-232/RS-485/USB/TTL optional
|
|
PHYSICAL PROPERTIES
|
|
Size:
|
80mm*45mm*19mm (without antenna port)
|
|
Antenna Impedance:
|
50Ω SMA (multiple antenna options available)
|
|
Operating Temperature:
|
-35~+75 C
|
|
Frequency Stability;
|
±2.5ppm
|
Interface definition:
|
Pin No.
|
Pin name
|
Description
|
Level
|
Remands
|
|
1
|
GND
|
Grounding of power supply
|
|
|
|
2
|
Vcc
|
Power supply DC
|
5V
|
|
|
3
|
RXD/TTL
|
Serial data receiving end
|
TTL
|
|
|
4
|
TXD/TTL
|
Serial data transmitting end
|
TTL
|
|
5
|
DGND
|
Digital grounding
|
|
|
|
6
|
A (TXD)
|
A of RS-485 or
TXD of RS-232
|
|
|
|
7
|
B (RXD)
|
B of RS-485
RXD of RS-232
|
|
|
8
|
SLEEP
|
Sleep control (input)
|
TTL
|
Low level sleep
|
|
9
|
TEST
|
Test (input)
|
|
|
