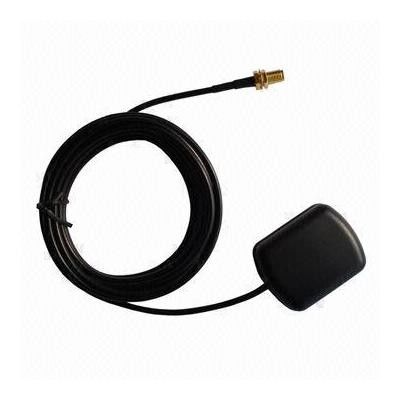

Original GPS Antenna with SMA Female or Male Connector and RG174 Cable

Original GPS Antenna with SMA Female or Male Connector and RG174 Cable
Original GPS Antenna with SMA Female or Male Connector and RG174 Cable

Large Image :  Original GPS Antenna with SMA Female or Male Connector and RG174 Cable

Product Details:
Place of Origin: China
Brand Name: Huaray
Certification: FCC, CE
Model Number: GPS Antenna
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Inner Staticproof Bag, External Cardboard Box
Delivery Time: In two or three days
Payment Terms: T/T, L/C, Western Union, MoneyGram, Paypal
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description

Key Specifications/Special Features:

Dielectric antenna:

Center frequency: 1575.42 ± 3MHz

VSWR (in BW): 1.5:1

Bandwidth: ±5MHz

Impedance: 50Ω

Polarization type: RHCP

LNA/filter:

LNA gain (without cable): 28 ± 2dB (typical)

Noise figure: 1.5dB

DC voltages: 2.2 to 5V

DC current: 5 to 15mA

Mechanical:

Dimensions: 48 x 38 x 14mm

Mounting: magnetic/adhesive

Housing: black

Packaging dimensions: 120 x 95 x 20mm

Optional cable: RG174, 3m or others

Optional connectors: SMA/MCX/SMB/BNC or others

Environmental:

Working temperatures: -40 to 85°C

Humidity: 55 to 75% RH

Waterproof grade: IP67
