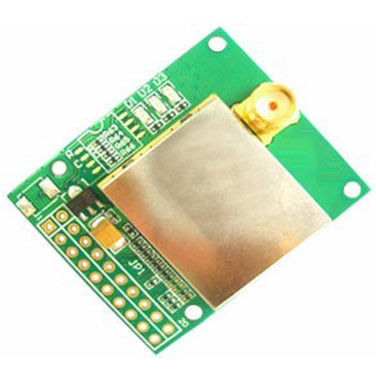

ZB2530SA-A ZigBee module Intelligent network module has low energy consumption low cost customizable ODM CC2530

ZB2530SA-A ZigBee module Intelligent network module has low energy consumption low cost customizable ODM CC2530
ZB2530SA-A ZigBee module Intelligent network module has low energy consumption low cost customizable ODM CC2530

Large Image :  ZB2530SA-A ZigBee module Intelligent network module has low energy consumption low cost customizable ODM CC2530

Product Details:
Place of Origin: China
Brand Name: HUARAY
Certification: FCC, CE, RoHS
Model Number: HR-2000
Payment & Shipping Terms:
Minimum Order Quantity: 2/pcs
Price: Negotiable
Packaging Details: Inner Staticproof Bag, External Cardboard Box
Delivery Time: 1~3 days
Payment Terms: T/T, Western Union, Moneygram, Paypal
Supply Ability: 500,000pcs/year
Contact Now
Detailed Product Description
Highlight:

2.4GHz ZigBee Module

,

CC2530 ZigBee Module

,

CC2591 ZigBee Module

,

CC2450 ZigBee Module

,

GSM Module

2.4G ZigBee Modules
--- Smaller size, high anti-interference, automatic network
* Home appliances intelligent control
* Auto Meter Reading system
* Industry telemetry and automatic data collection system
* Temperature and humidity control system for hotel, computer room and factory
* Wireless monitor, door's security, personnel orientation
* Traffic and the control for street lamp
* Logisties, active RFID and wireless handheld terminal

PERFORMANCE

Power Output:

4dBm (2.5mW)

RF Line-of-sight Range:

300m(BER=10-3)

RF Effective Rate:

250kbps

Interface baud rate:

2400～115200bps
Space Channel: 5MHz

Bandwidth:

2MHz
Receiver Sensitivity: -97dBm

SYSTEM CHARACTERISTIC

Networking Topology:

IEEE 802.15.4 protocol, ZigBee antomatic network.Transparent,formatted API and AT command
  Modbus transmission protocol (Optional ex-factory)
RF IC: TI CC2530F256, 256K Flash
  4 ways ADC, 4 ways IO port (customized)

COMPATIBILITY

HR-2001

POWER

Supply Voltage:

+3.0~3.6V

Transmit Current:

≤40mA

Receive Current:

≤27mA

Sleep current:

≤3μA (customized)

GENERAL

Communication Mode:

Half-duplex
Frequency Band: 2.4~2.5GHz

Modulation Mode:

QPSK

Channel:

16 (Default)

Interface:

TTL/UART

PHYSICAL PROPERTIES

Size:

25.5mm×24.4mm×4mm (excluding antenna base and data pin)

Weight:

25g

Antenna Base:

50Ω,pcb antenna

Operating Temperature:

Industrial: -40℃~+80℃

Frequency Stability:

±20ppm
CERTIFICATIONS
FCC, CE, RoHS Meet
