1500W Cooling System Outdoor Power Equipment Air Conditioner for Telecom Outdoor Cabinets

I'm Online Chat Now

1500W Cooling System Outdoor Power Equipment Air Conditioner for Telecom Outdoor Cabinets

1500W Cooling System Outdoor Power Equipment Air Conditioner for Telecom Outdoor Cabinets
1500W Cooling System Outdoor Power Equipment Air Conditioner for Telecom Outdoor Cabinets

Large Image :  1500W Cooling System Outdoor Power Equipment Air Conditioner for Telecom Outdoor Cabinets

Product Details:
Place of Origin: China
Brand Name: HUARAY
Certification: CE, FCC, ROHS
Model Number: HR-1001
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: negotiable
Packaging Details: Inner Staticproof Bag, External Cardboard Box
Delivery Time: two working days
Payment Terms: T/T, L/C, Papal, Moneygram, Western Union
Supply Ability: 100,000PCS/month
Detailed Product Description

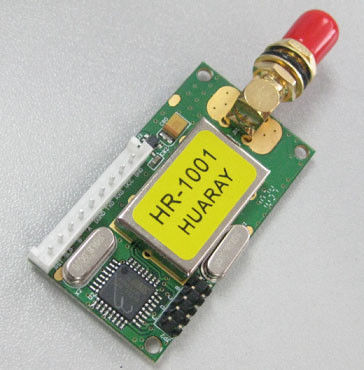

HR-1001, the low-power wireless transceiver data module is used as the wireless data transceiver in short-ranges, with the small size, weight and power consumption and good stability and reliability. Narrowband low power UHF wireless data transmitters and receivers with channel spacings as low as 25 kHz:

 * AMR  Automatic Meter Reading

 * Wireless alarm and security systems

 * Home automation

 * Low power telemetry

 * 433 / 868 and 915 MHz ISM/SRD band systems

 * Data radio can be used for Wireless conference voting system;

 * Mapping;

 * Radio modem can be used for Sports training & competition;

 * Wireless dishes ordering;

 * Wireless POS, PDA wireless smart terminal;

 * RF modem can be used for Electronic bus station and intelligent traffic;

 * RF transmitter Wireless electronic display screen and queuing machine;

 * Wireless telemetry Charging for parking, parking lot;

 * Wireless modem Automobile inspection and four-wheel orientation;

 * Wireless sensor Industrial wireless remote control and air conditioning remote controller;

 * Observation and predication of oil well and hydrological information;

 * Wireless RS232/RS485 conversion/connector;

 * Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;

 Condition:

Technical specification of HR-1001:

Serial number

Item

Parameter

Note

1

Modulation mode

GFSK/FSK



2

Work frequency

420.00~450.30/860~875/910~925MHz



3

Transmission power

10dBm(10mW)



4

Receiving sensitivity

-115 ~ -118dBm



5

Channel amount

8channel

User setting

6

Transmitting current

<40mA



7

Receiving current

<20mA



8

Sleeping current

<3uA



9

Interface velocity

1200/2400/4800/9600/14400/119200bps



10

Interface mode

UART TTL/RS-232/RS-485

User setting

11

Power supply

+3.6~5VDC



12

Working temperature

-25 to 80

1500W Cooling System Outdoor Power Equipment Air Conditioner for Telecom Outdoor Cabinets 0

13

Working humidity

10%~90%(relative humidity without condensation)



14

Dimension

46*27*10mm



15

Reliable transmit distance

300m













Pin No

Pin Name

Description

Level

Connected to Terminal

Memo

1

GND

Grounding of Power Supply



Grounding of Power Supply



2

VCC

Power supply DC

3.3~5.0V





3

RXD/TTL

Serial data receiving end

TTL

TXD

COM1

4

TXD/TTL

Serial data transmitting end

TTL

RXD

5

SGND

Grounding of the signal







6

A(TX)

A of RS-485

Or TX of RS-232



A(RXD)

COM2

7

B(RX)

B of RS-485 or RX of RS-232



B(TXD)

8

SLEEP

Sleep control (Input)

TTL

Sleep signal

Low efficiency t>15ms

9

RESET

Reset control (input)

TTL

Reset signal

Negative pulse reset 1ms
