ATWINC1500-MR210PB1961 WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount RF and Wireless

I'm Online Chat Now

ATWINC1500-MR210PB1961 WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount RF and Wireless

ATWINC1500-MR210PB1961 WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount RF and Wireless
ATWINC1500-MR210PB1961 WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount RF and Wireless

Large Image :  ATWINC1500-MR210PB1961 WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount RF and Wireless

Product Details:
Place of Origin: China
Brand Name: Huaray
Certification: FCC, CE, RoHS, ISO9001
Model Number: HR-1021
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Inner Staticproof Bag, External Cardboard Box
Delivery Time: one or two working days
Payment Terms: T/T, L/C, Western Union, Paypal, Moneygram
Supply Ability: 100,000pcs/month
Detailed Product Description

ATWINC1500-MR210PB1961 WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount RF and Wireless

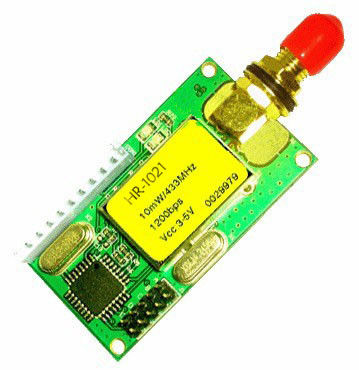

HR-1021 Wireless Transceiver Data Module with the low-power wireless transceiver data module is used as the wireless data transceiver in short-ranges, with the small size, weight and power consumption and good stability and reliability. Narrowband low power UHF wireless data transmitters and receivers with channel spacings as low as 25 kHz:

* AMR Automatic Meter Reading

 * Wireless alarm and security systems

 * Home automation

 * Low power telemetry

* 433 / 868 and 915 MHz ISM/SRD band systems

* Data radio can be used for Wireless conference voting system;

* Mapping;

* Radio modem can be used for Sports training & competition;

* Wireless dishes ordering;

* Wireless POS, PDA wireless smart terminal;

* RF modem can be used for Electronic bus station and intelligent traffic;

* RF transmitter Wireless electronic display screen and queuing machine;

* Wireless telemetry Charging for parking, parking lot;

* Wireless modem Automobile inspection and four-wheel orientation;

* Wireless sensor Industrial wireless remote control and air conditioning remote controller;

* Observation and predication of oil well and hydrological information;

* Wireless RS232/RS485 conversion/connector;

* Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;



Technical specification of HR-1021 RF Module:

Serial number

Item

Parameter

Note

1

Modulation mode

GFSK/FSK



2

Work frequency

420.00~450.30/860~875/910~925MHz



3

Transmission power

17Bm(50mW)



4

Receiving sensitivity

-115 ~ -118dBm



5

Channel amount

8channel

User setting

6

Transmitting current

<100mA



7

Receiving current

<30mA



8

Sleeping current

<3uA



9

Interface velocity

1200/2400/4800/9600/19200bps



10

Interface mode

UART TTL/RS-232/RS-485

User setting

11

Power supply

+3~5VDC



12

Working temperature

-25 to +80

ATWINC1500-MR210PB1961 WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount RF and Wireless 0

13

Working humidity

10%~90%(relative humidity without condensation)



14

Dimension

47mm*6mm*10mm



15

Reliable transmit distance

1200m
